Adams Rite 7100 Monitored Flat Electric Strike | 12V DC

£475.75 ex VAT

£570.90 inc VAT

£475.75 ex VAT

£570.90 inc VAT

ex VAT

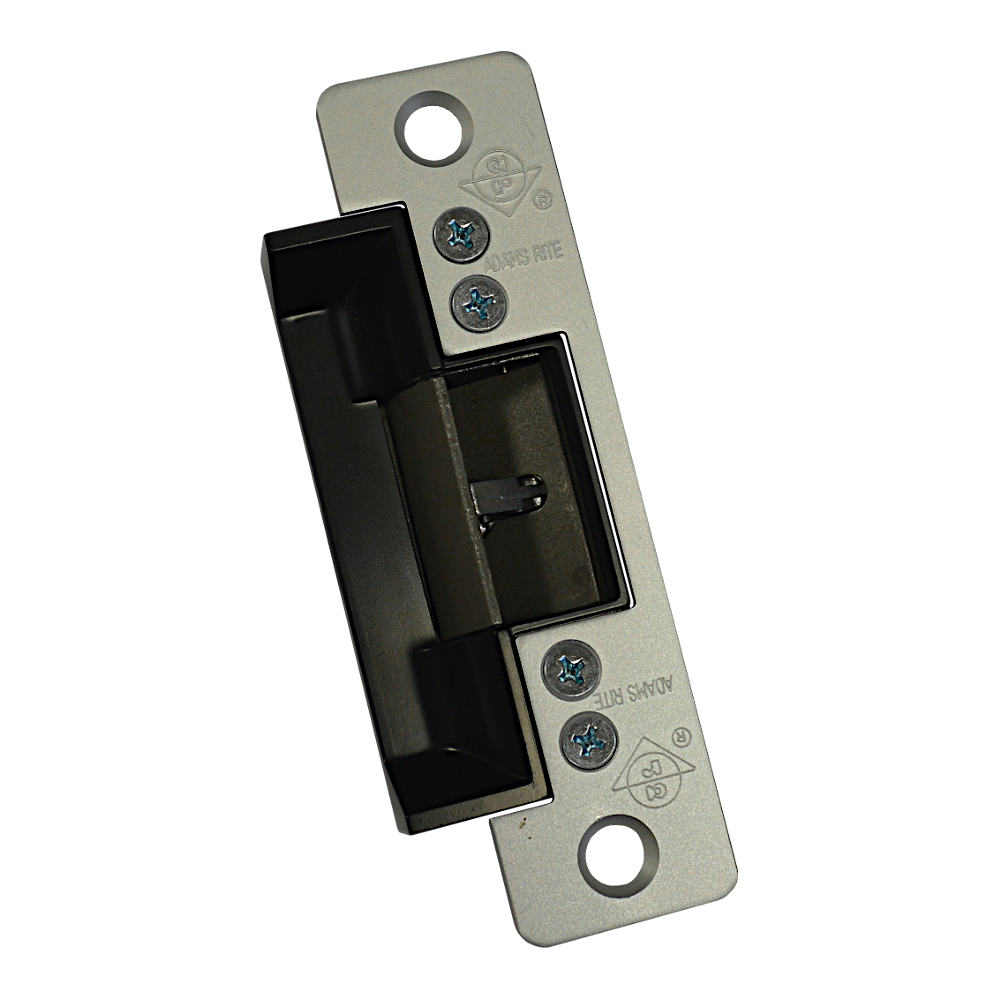

The Adams Rite 7100 Monitored is a flat-faceplate mortice electric strike for compatible narrow-stile aluminium doors. It combines the 7100-series mechanical release with latch-status monitoring for connection to suitable access-control, alarm or building-management inputs.

This product is offered in 12V DC fail-secure and fail-safe monitored variants. If monitoring is not required, see the standard 7100 flat electric strike.

Why Choose the Monitored Version?

The monitored version provides electrical latch-position feedback to compatible control equipment. This is useful where the system needs confirmation of the locking condition rather than only an unlock command.

Key Features

Monitored flat-faceplate electric strike
12V DC operation
Fail-secure and fail-safe variants
Latch-position monitoring contacts
Approx. 907kg (2,000lb) holding force
Non-handed for correctly prepared openings
Compatible with suitable Adams Rite 4500, 4700 and 4900-series deadlatches
Suitable for compatible 12.7-15.9mm latchbolt projection

Technical Specifications

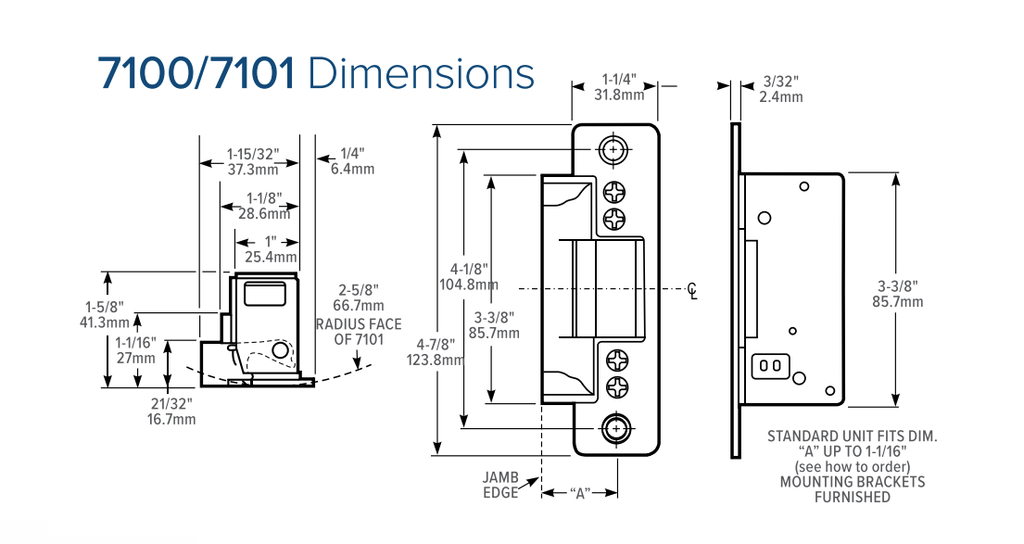

Faceplate	Flat, approx. 123 x 32mm
Body depth	Approx. 25mm
Voltage	12V DC
Typical current	Approx. 0.332A @ 12V DC
Monitoring	Yes - latch-position feedback
Holding force	Approx. 907kg (2,000lb), subject to correct installation
