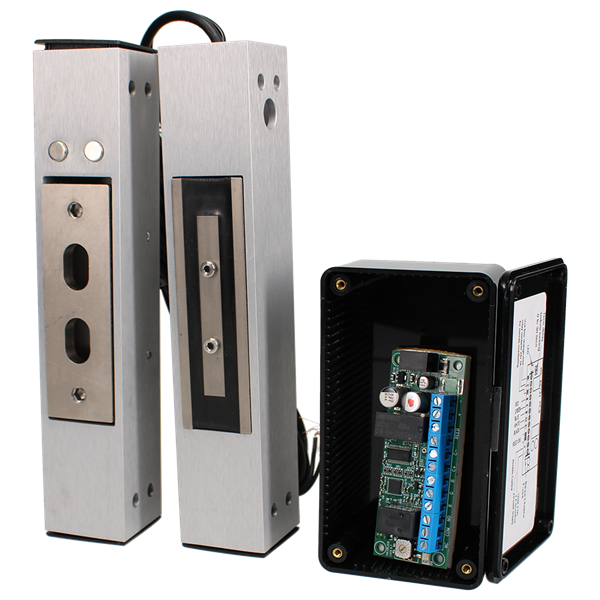

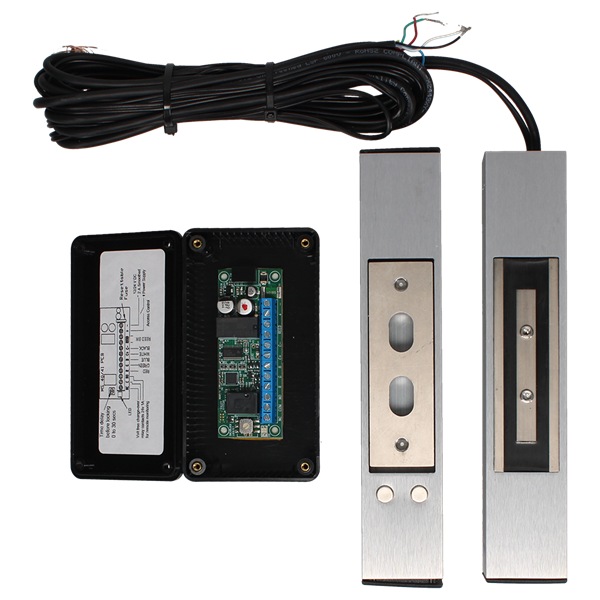

ADAMS RITE Armlock Surface Shear Magnet 1354-0201 | L9514

The Adams Rite Armlock 1354 is a mini Electro-Shearlock to facilitate remote access where minimal intrusion into the environment is required. It is designed for single action internal doors or external doors where a form of cover is situated above the doorway to prevent direct weather ingress.

Suitable for use on aluminium, timber and steel doors, this magnet can also be installed on glass door when used in conjunction with the Adams Rite Glass Door Bracket (sold separately). It has a nominal 1500kg shear holding force and adjustable locking time between 1 and 30 seconds. It can be Can be fitted into the head or vertical locking stile.

Features

• Dual coil 12vDC or 24vDC
• Suitable for door gaps up to 8mm
• Adjustable locking time 1-30 secs
• Nominal 1500kg shear holding force
• Fail unlocked
• Surface fitting
• Current Consumption - Pull 1.5A Hold 0.5A at 12V DC & Pull 1.5A Hold 0.4A at 24V DC

Size

Magnet Length 220mm x Magnet Depth 38mm x Magnet Height 38mm x Width 17.5mm

Armature Depth 38mm x Armature Height 38mm x Armature Length 220mm

Plate Depth 38mm x Plate Height 38mm x Plate Width 220mm

• Glass door fixing bracket available
• Surface mounted (mortice versions available)
