Videx VX2200 SP300-1 Vandal-Resistant Digital Audio Panel | L23609

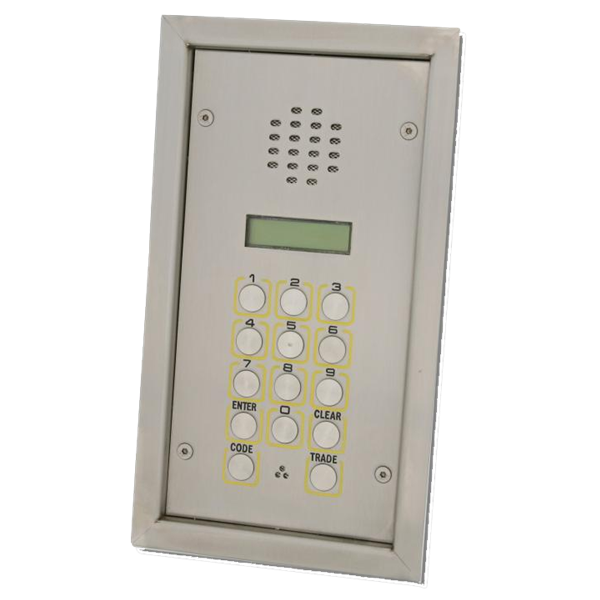

The Videx SP300-1 is a vandal-resistant VX2200 digital audio entrance panel for large apartment blocks, offices and multi-entrance developments. A visitor enters the apartment or office number on the keypad, then follows the instructions shown on the two-line backlit display and provided through spoken call prompts.

The panel supports systems with up to 998 users and removes the need for a separate call button for every apartment. Integrated coded access, PC or keypad programming and a heavy-gauge stainless-steel front make it suitable for busy shared entrances.

Key Features

• VX2200 digital audio entrance panel.
• Capacity for up to 998 users.
• Supports systems with up to 10 main entrances.
• Two-line, 16-character backlit LCD display.
• Spoken, visual and audible call-progress guidance.
• Fourteen vandal-resistant keypad buttons with high-contrast markings.
• Up to 998 individual four-to-six-digit access codes.
• Manual keypad or 2X00PC software programming.
• Trade-button facility and push-to-exit input.
• 2.5mm stainless-steel front panel.
• Flush bezel/back box supplied as the standard mounting format.
• Optional surface box with rainshield available separately.

Technical Specifications

• Manufacturer: Videx
• Product code: L23609
• Model: SP300-1
• Operating voltage: 13V DC ±10%
• Current consumption: Approximately 160mA standby; 350mA maximum
• User capacity: Up to 998
• Access codes: Up to 998, one per user
• Display: Two-line, 16-character backlit LCD
• Front-panel dimensions: 140 × 280mm
• Operating temperature: -10°C to +50°C
• System: Videx VX2200 digital audio

Recommended Applications

• Large apartment blocks and developments with more than 20 users.
• Office buildings requiring number-based calling and individual access codes.
• Multi-entrance VX2200 systems requiring a vandal-resistant digital audio panel.

Compatible Products and Accessories

For apartment handsets, see the Videx 3171A VX2200 handset. Power-supply options include the Videx 520M multi-output power supply and Videx 521 13.5V DC power supply; select the supply and system components to suit the complete VX2200 design.
