Slimline Magnetic Lock with Integrated Exit Button | Dhm600

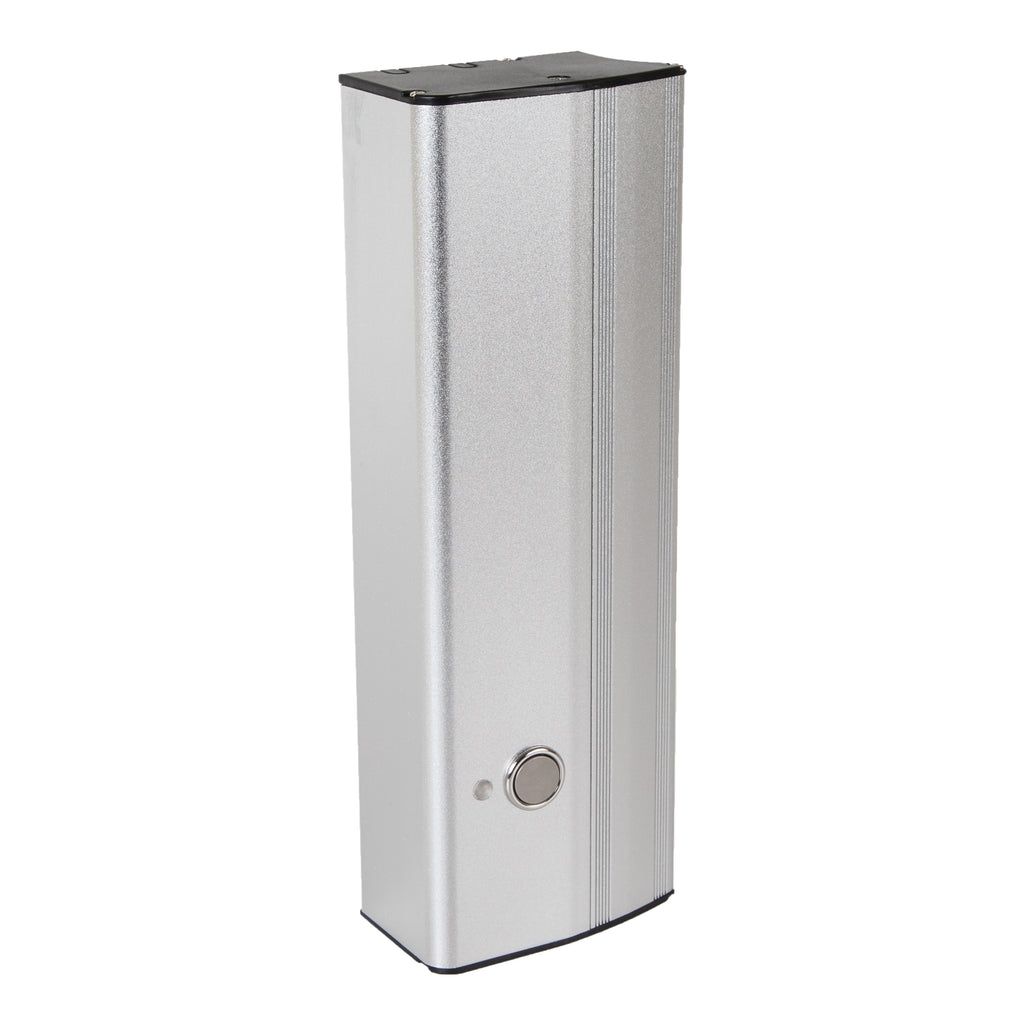

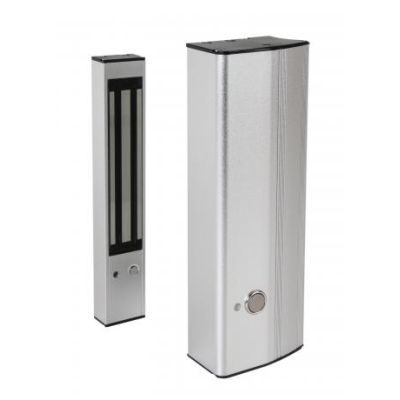

The DHM600 is a slimline monitored electromagnetic lock designed for access control and door entry applications. Combining a magnetic lock, integrated exit button, monitoring functionality, and aluminium cover housing into a single unit, it provides a neat and professional locking solution for timber and aluminium door systems.

With a holding force of up to 600lbs (280kg), built-in surge protection, adjustable delay timer, and door status monitoring, the DHM600 is ideal for commercial, healthcare, education, and public sector environments. The lock should be installed centrally on the door leaf to minimise door distortion and ensure optimal performance.

Key Features

• Slimline monitored magnetic lock
• Integrated exit button
• Door open and door closed monitoring outputs
• Holding force of up to 600lbs (280kg)
• Built-in surge protection
• Adjustable release delay timer
• Delay settings:
  • 0 seconds
  • 2.5 seconds
  • 5 seconds
  • 9 seconds
• No residual magnetism
• Aluminium housing
• Suitable for timber and aluminium doors
• Designed for 90° door applications
• Easy to install and configure
• Fail-safe operation

Technical Specifications

• Product Type: Monitored Electromagnetic Lock
• Holding Force:
  • 600lbs
  • 280kg
• Supply Voltage:
  • 12VDC
  • 24VDC
• Current Consumption:
  • 500mA @ 12VDC
  • 250mA @ 24VDC
• Operating Mode: Fail Safe
• Monitoring:
  • Door Open Detection
  • Door Closed Detection
• Surge Protection: Built-In
• Residual Magnetism: None
• Delay Timer:
  • 0 Seconds
  • 2.5 Seconds
  • 5 Seconds
  • 9 Seconds
• Housing Material: Aluminium
• Door Compatibility:
  • Timber Doors
  • Aluminium Doors
• Recommended Installation: Centre of Door Leaf

Dimensions

Complete Assembly

• Length: 300mm
• Height: 92mm
• Depth: 58mm

Magnetic Lock Body

• Length: 274mm
• Height: 46.2mm
• Depth: 30mm

Typical Applications

• Access control systems
• Door entry systems
• Commercial offices
• Healthcare facilities
• Educational establishments
• Public buildings
• Internal secure doors
• Aluminium and timber door systems
