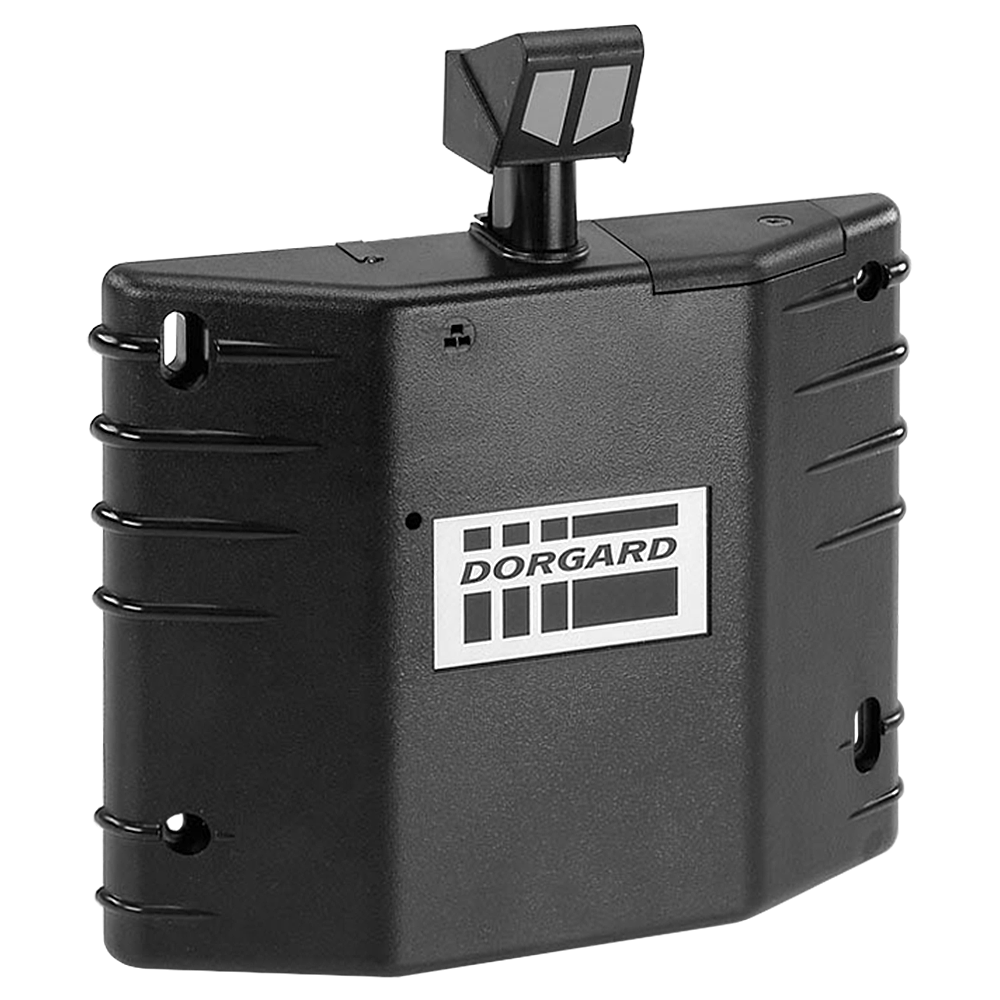

Fireco Dorgard DG2000 Fire Door Retainer (3 Colours)

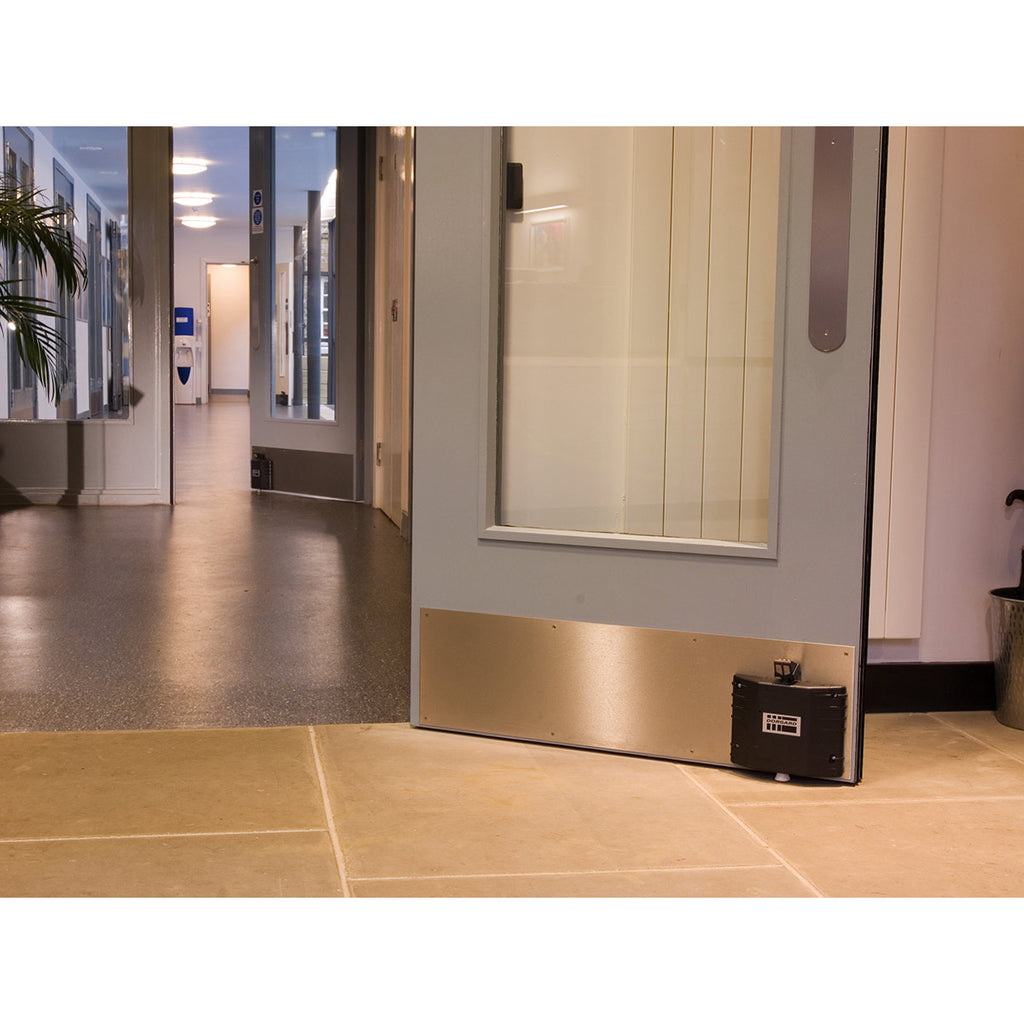

The Fireco Dorgard DG2000 is a self-contained, battery-operated acoustic fire door retainer. It holds a suitable self-closing fire door open during normal use and releases when it detects a sustained compatible fire alarm, allowing the existing door closer to shut the door.

This is the standard device-only DG2000. A flat floorplate is not included with this version.

Standard Dorgard or SmartSound?

The standard DG2000 is ideal where the fire alarm can be heard clearly and background noise is reasonably controlled. It listens for a sustained alarm sound and releases the door when the alarm is detected.

Choose Dorgard SmartSound for busier or noisier buildings. SmartSound adds advanced sound recognition that filters common background noise such as vacuum cleaners, machinery and general building activity. This helps it distinguish the fire alarm from everyday noise and can reduce nuisance or unwanted door releases.

Key Features

• Battery-operated acoustic fire door retainer
• No hard wiring to the fire alarm panel
• Foot-operated plunger holds the door at a suitable open angle
• Adjustable alarm sensitivity
• Timed night-time release function
• Suitable for compatible doors up to 160kg and 1,600mm wide, up to EN7 closer power size
• Available in black, red or white

Technical Details

• Alarm response: approximately 65dBA with a sustained alarm of around 14 seconds, subject to site conditions
• Power: 2 x 1.5V LR14 / C-size batteries
• Dimensions: approximately 205mm x 195mm x 45mm
• Floorplate: not included with this device-only version

Installation

Install only on a suitable self-closing fire door and commission the unit against the building's actual fire alarm sound level. The door must close fully when the retainer releases. Suitability should be confirmed against the site's fire strategy, risk assessment and the manufacturer's installation instructions.
