Keypad & RD26 Reader Access Control Kit | Kpx2000/Rd26

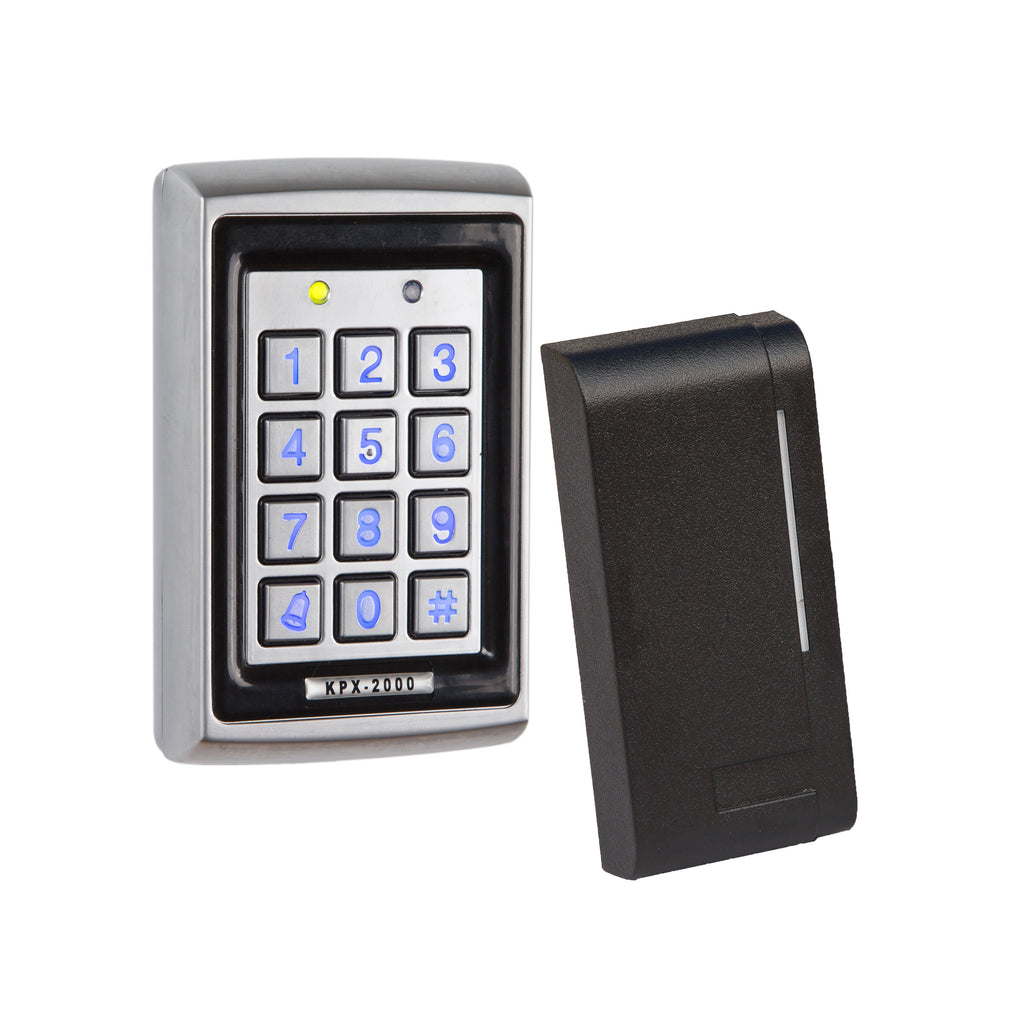

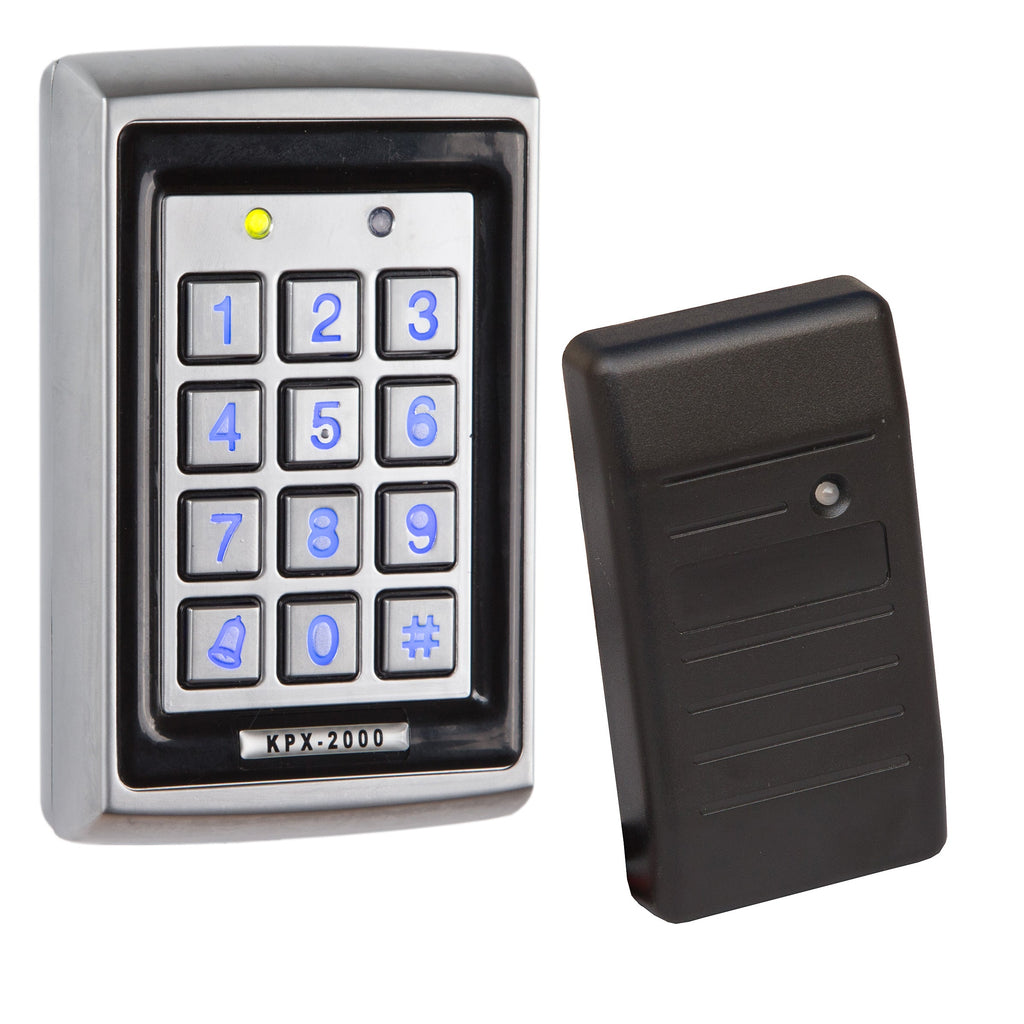

The KPX2000/RD26 Kit combines a feature-rich keypad with integrated proximity reader and an additional external RD26 proximity reader, providing a versatile access control solution for single or dual-door applications. Designed for commercial, industrial, and residential environments, the system supports entry via PIN code, proximity credentials, or a combination of both.

The KPX2000 features a robust zinc alloy anti-vandal housing with full keypad programming, while the RD26 reader extends access control functionality through a reliable Wiegand connection. For outdoor installations, the keypad should be fitted with a suitable rain shield to provide additional weather protection.

Key Features

• Access control kit including KPX2000 keypad and RD26 proximity reader

• Supports our swipe cards and key fobs
• Access via PIN code, proximity credential, or combined authentication
• Additional reader input for expanded access control functionality
• Suitable for single-door or dual-door operation
• Built-in alarm input and doorbell facility
• Selectable keypad backlighting for improved visibility
• Lock output and auxiliary output for additional control options
• Stores up to 500 individual users
• Fully programmable directly from the keypad
• Adjustable lock and auxiliary output timers
• Audible key press confirmation
• Formal coated PCB for enhanced durability
• Strong zinc alloy electroplated anti-vandal housing
• Suitable for indoor use or outdoor use when protected with a rain shield

KPX2000 Technical Specifications

• User Capacity: Up to 500 Users
• Access Methods: PIN Code and EM Proximity Credentials
• Supply Voltage: 12VDC
• Mounting Type: Surface Mount
• Housing Material: Zinc Alloy Electroplated Casing
• Outputs: Lock Output and Auxiliary Output
• PCB Protection: Formal Coated
• Additional Features: Alarm Input, Doorbell Function, Back Tamper Protection

RD26 Reader Features

• High-impact plastic housing suitable for external installations
• Fully encapsulated electronics with IP65 protection
• Standard 26-bit Wiegand output
• Compatible with EM proximity cards and fobs
• LED status indication
• Compact and durable design
• Long-distance communication capability using screened cable

RD26 Technical Specifications

• Reader Type: 26-Bit EM Proximity Reader
• Operating Frequency: 125kHz
• Supply Voltage: 9–12VDC
• Current Consumption: Maximum 50mA
• Connection Type: 4-Wire Wiegand Output
• Read Speed: 120ms
• Maximum Cable Distance: Up to 100m (screened cable)
• Protection Rating: IP65
• Operating Temperature: -20°C to +60°C

Typical Applications

• Commercial office buildings
• Industrial premises
• Residential developments
• Automatic door systems
• Staff and employee entrances
• Secure storage areas
• Multi-door access control installations
