VIDEX Vandal Resistant 1 Way Surface Mounted Audio Kit with Keypad | L23603

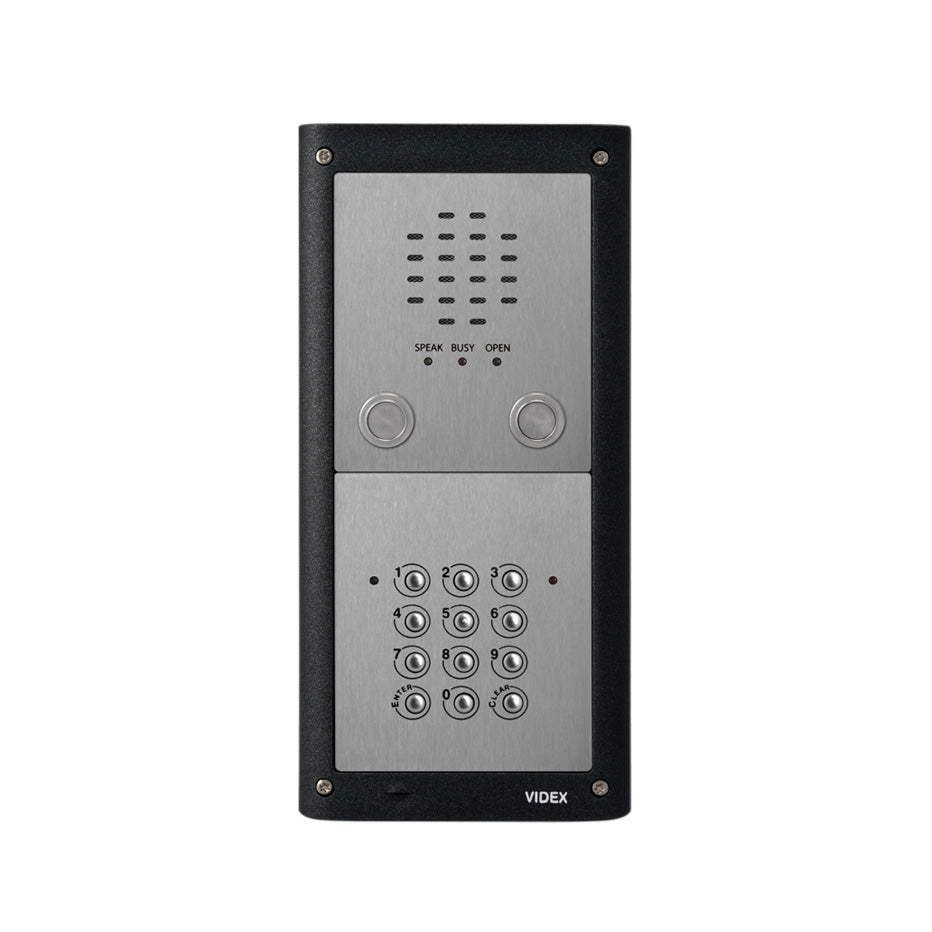

The VIDEX VR4K1S/CL is a one-way audio door entry kit with an integrated coded-access keypad. Designed for surface mounting, the system combines a vandal-resistant stainless steel entrance panel with two-way speech, electronic call tone and door lock release.

Call-progress indicators provide clear feedback when a call is placed, the line is busy and the door is released. The supplied wall-mounted handset includes a lock-release button and a three-position call-tone volume control. Up to two additional handsets can be connected, allowing a maximum of three handsets on the call button.

The integrated keypad can store two access codes between four and eight digits long. Its two changeover relay outputs can be programmed to operate for between 1 and 99 seconds or set to latching operation.

Key Features

• Complete one-way audio door entry kit
• Surface-mounted entrance panel
• Vandal-resistant stainless steel construction
• Integrated coded-access keypad
• Two-way speech and electronic call tone
• Call-progress and door-release indicators
• Dry-contact lock output
• Programmable door-release time
• Push-to-exit input
• Up to three handsets can operate from the call button
• Wall-mounted handset with adjustable call volume
• Gunmetal grey panel surround

Technical Specifications

• Model: VR4K1S/CL
• System type: One-way audio intercom
• Mounting: Surface
• Number of entrances: One
• Keypad capacity: Two access codes
• Code length: 4–8 digits
• Keypad outputs: Two changeover relays
• Relay operation: 1–99 seconds or latching
• Lock output: Dry contact – common, normally open and normally closed
• Maximum handsets: Three
• Cores to handset: Five
• Recommended cable: CW1308

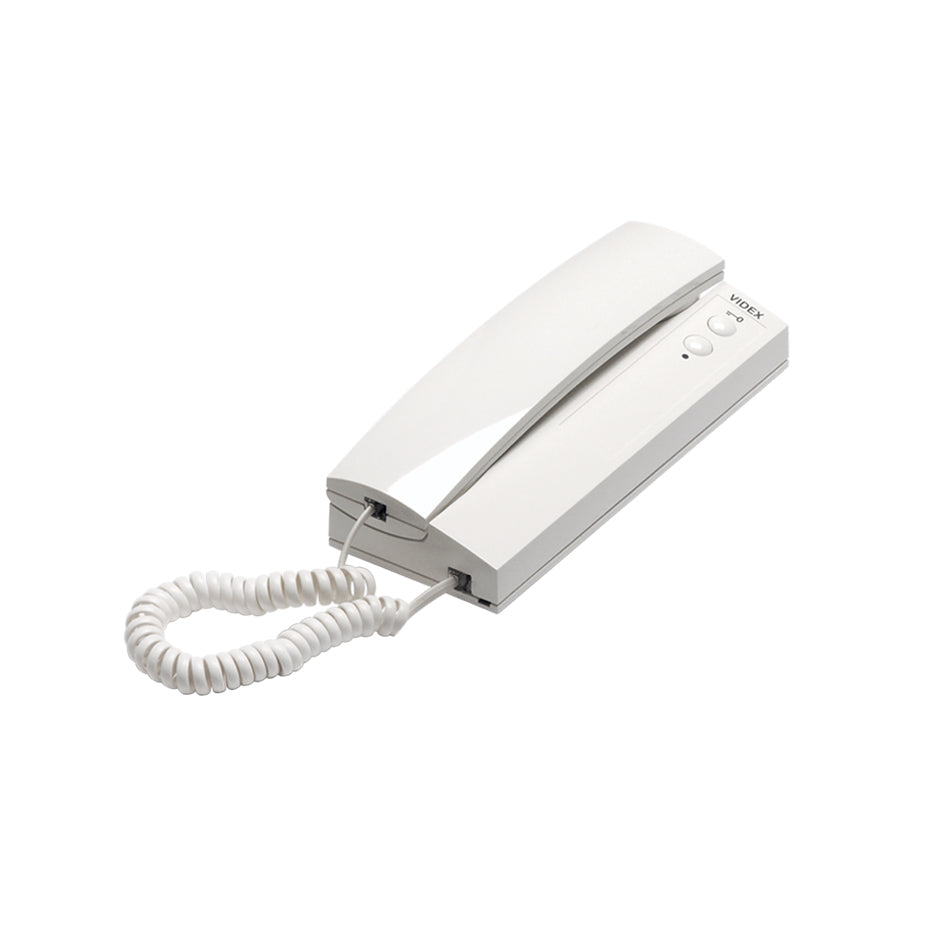

• Handset model: 3111

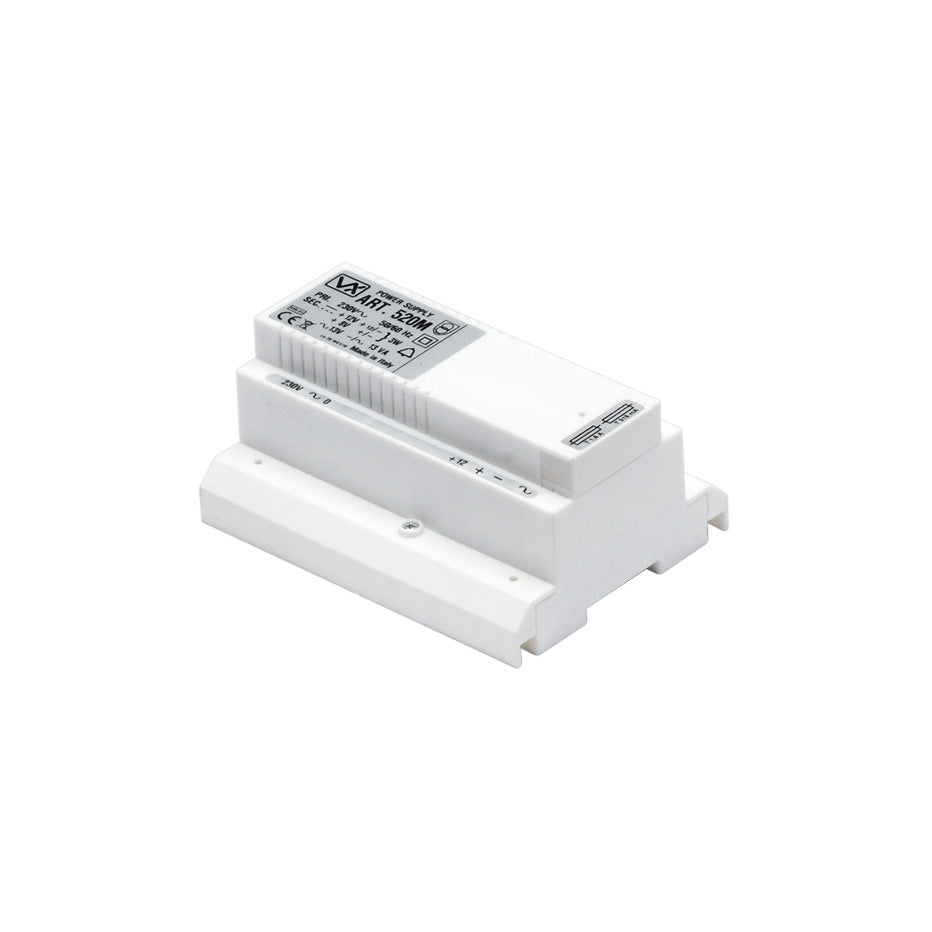

• Power supply: VIDEX 520
• Amplifier module: VX136
• Keypad module: VR4KCLM
